Everything an architect, specifier or contractor needs — technical datasheets, installation system diagrams, material comparisons, sustainability documentation and code certifications, all in one place.
Resource Library
Five categories of downloadable documentation — request access to the full technical pack or browse individual resources below.
Full product specifications: dimensions, tolerances, mechanical performance and physical properties for every BRAVOTEK collection.
The ventilated façade is a 5-layer engineered assembly. Download substructure drawings, anchor details and step-by-step installation sequences.
Side-by-side evaluation of extruded porcelain against cement board, terracotta, ACM and natural stone — for informed specification.
Environmental product declarations, recycled content data and LEED v4 contribution analysis for green building certification.
Independent third-party certifications confirming compliance with international building codes and product standards.
Order a curated sample box of all BRAVOTEK collections — textured, full-body, stones, cements, marbles and woods — shipped to your studio.
Product Specifications
Reference values for specification. Always confirm against the project-specific datasheet before final selection.
| Property | BRAVOTEK ValueExtruded Porcelain | Test Standard |
|---|---|---|
| Panel Thickness | 19 mm | UNE-EN 14411 |
| System Weight | 32 kg/m² (≈ 6.55 lb/sf) | — |
| Water Absorption | <0.5% (lab <0.1%) | ISO 10545-3 |
| Fire Reaction Class | A1 (non-combustible) | EN 13501-1 |
| Fire Resistance — ASTM | ASTM E136 · NFPA 285 | US Codes |
| Format Range | 300×800 mm → 1000×3000 mm | — |
| Edge Finish | 4-side factory rectified (±0.1 mm) | — |
| Frost Resistance | Resistant to −30 °C | ISO 10545-12 |
| UV / Colour Stability | No fading (UV-stable) | ISO 10545-16 |
| Thermal Shock | Resistant | ISO 10545-9 |
| Chemical Resistance | Resistant (GA / GB class) | ISO 10545-13 |
| Stain Resistance | Class 5 (highest) | ISO 10545-14 |
| Acoustic Improvement | ~4 dBA @ 1000 Hz | — |
| Service Life | 50+ years | — |
Values are typical for the BRAVOTEK extruded porcelain range. Project-specific testing and certification available on request.
Installation System

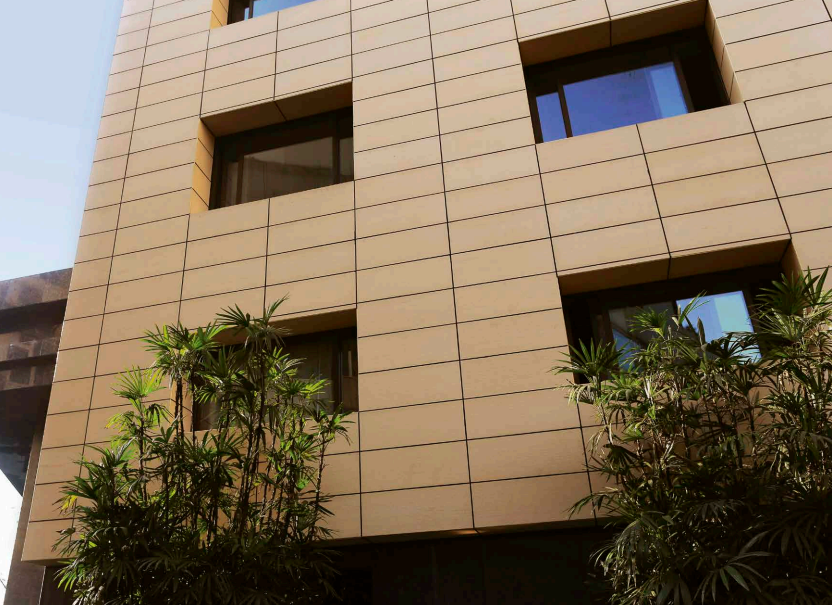

BRAVOTEK is a complete rainscreen system — panel, substructure and accessories from a single source. The ventilated cavity drives the chimney effect: cutting HVAC loads by 15–35% while protecting the structural wall from moisture and thermal bridging.

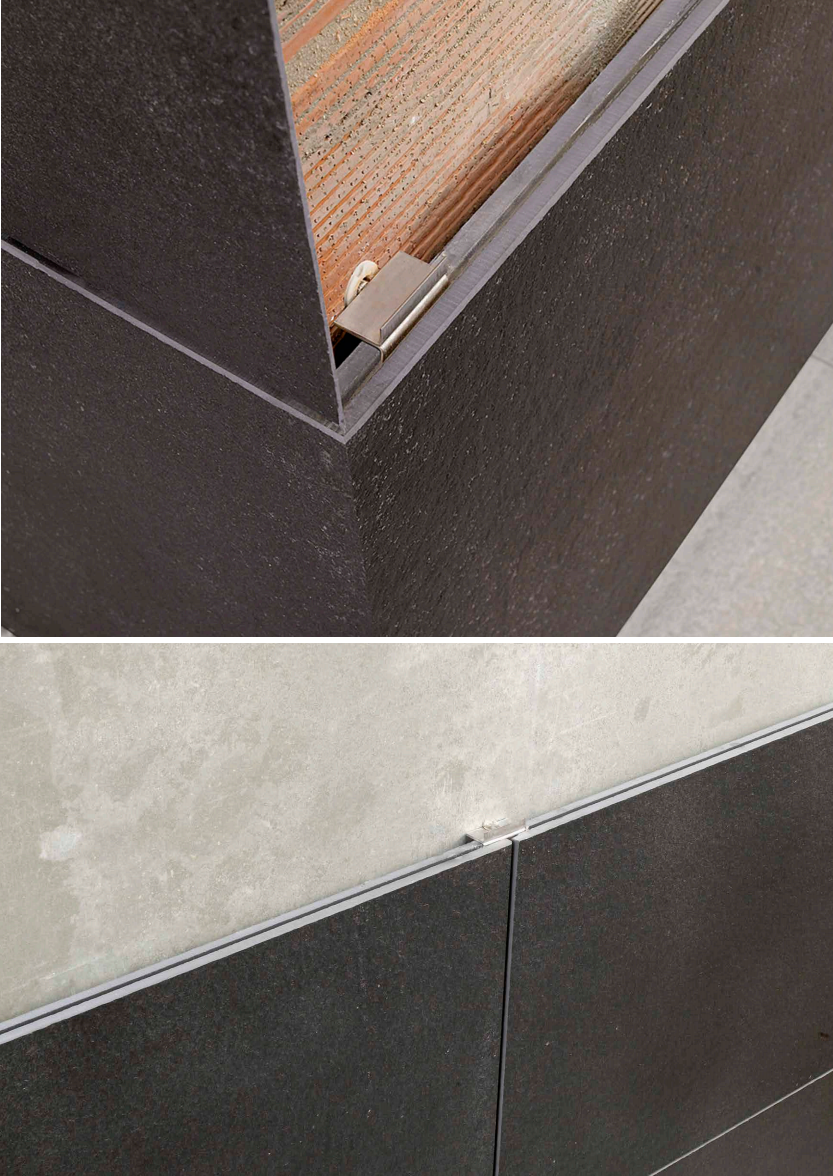

19 mm extruded porcelain — the rainscreen skin, 4-side rectified for tight open joints.
≥20 mm ventilated air gap enabling the chimney effect and pressure equalisation.
Aluminium rails & brackets — vertical/horizontal adjustment, thermally isolated from the wall.
Continuous rigid or mineral wool insulation — removes thermal bridges, stabilises envelope.
Concrete, masonry or steel stud substrate — protected from weather, moisture & temperature swing.
Sustainability
Manufactured in a closed-loop facility: 30,000 m² of photovoltaic generation delivers 40% of plant electricity, a closed-water circuit eliminates discharge, and 11% of unfired clay is recycled back into production.
Full LEED contribution sheet and EPD available on request — mapped to specific credits across EA, MR and IEQ categories.
⬇ Download LEED SheetCertifications
BRAVOTEK is certified by international third-party bodies — confirming code compliance, fire performance and environmental impact.
